1. Download the cmon binary package to a monitoring host
Currently there are binaries available for Linux 64-bit and 32-bit (statically linked) and works for MySQL Cluster 7.0.9 and later 7.0.x versions and also 7.1.x.
In this case the monitoring host will be on 'ndb05' (IP address 10.0.1.5) - see 9. Suggested Deployment for a picture describing the setup.
The Monitoring machine should have installed:
- a mysql server up and running that will store the cmon database - this mysql server does not need to be connected to MySQL Cluster. If you build from source you need to have the mysql cluster libraries and include files
- apache (if you want to have the web interface) + php_mysql
sudo apt-get install apache2 php5-mysql - rrdtool (if you want to have graphs in web interface)
sudo apt-get install rrdtool> cd /usr/local
> wget http://www.severalnines.com/downloads/cmon/cmon-1.1.4-64bit-glibc23-mc70.tar.gz
> tar xvfz cmon-1.1.4-64bit-glibc23-mc70.tar.gz
> ln -s cmon-1.1.4-64bit-glibc23-mc70 cmon
2. Verify that you have a free API slot [mysqld] so that cmon can connect to MySQL Cluster
> ndb_mgm -e "show"
Cluster Configuration
---------------------
[ndbd(NDB)] 2 node(s)
id=3 @10.0.1.3 (mysql-5.1.39 ndb-7.0.9, Nodegroup: 0, Master)
id=4 @10.0.1.4 (mysql-5.1.39 ndb-7.0.9, Nodegroup: 0)
[ndb_mgmd(MGM)] 2 node(s)
id=1 @10.0.1.1 (mysql-5.1.39 ndb-7.0.9)
id=2 @10.0.1.2 (mysql-5.1.39 ndb-7.0.9)
[mysqld(API)] 6 node(s)
id=7 @10.0.1.1 (mysql-5.1.39 ndb-7.0.9)
id=8 @10.0.1.2 (mysql-5.1.39 ndb-7.0.9)
id=9 (not connected, accepting connect from any host)
id=10 (not connected, accepting connect from 10.0.1.5)
Yes, I have two slots - if I run cmon from host 10.0.1.5, then it is fine (id=10), but in this case, I can connect cmon from any host (id=9). Point is that you must have a slot free with "any host" or from an explicit host.
You must also have MemReportFrequency=30 (or some other value, in seconds) in order to get the memory usage events sent from MySQL Cluster. Otherwize, CMON will not be able to present memory utilization information!
3. Run the cmon install script
> cd /usr/local/cmon/bin
> ./cmon_install.sh
This script will install cmon, rrd, init.d scripts, and generate SQL scripts for GRANTs
Distribution: fedora
**** MYSQL CONNECTION ****
CMON and the RRD scripts needs a mysql connection to speak mysql server holding the cmon database.
Specify the BASEDIR where mysql is installed (default /usr/local/mysql/): /usr/local/mysql/mysql
Specify the hostname of the mysql server having the cmon database (default 'ndb05'): <return>
No hostname specified - using default 'ndb05'
Specify the port of the mysql server having the cmon database (default 3306): <return>
No port specified - using default 3306
Specify the password for the 'cmon' user (default no password): <return>
No password specified - using default (no password)
Specify the ndb-connectstring to the cluster - MUST BE COMMA SEPARATED (e.g, mgmdhost_A,mgmdhost_B):
: ndb01,ndb02
## Comment: ndb01,ndb02 are the hostnames of the two management
## servers in my cluster. YOU MUST SPECIFY THIS!
Specify cluster_id - must be unique amongst all monitored cluster (default is '1'):
<return>
Setting cluster_id = 1
Specify the name of and where to write the cmon log file. (default is /var/log/cmon.log): <return>
logfile is not specified - using default (/var/log/cmon.log)
**** WWW interface ****
The www files will be copied to /var/www/html/cmon/
## Comment: The installation scripts tries to find the default
## location for www used in your distribution
Specify the WWWROOT of your webserver (default /var/www/html): <return>
Copying files to /var/www/html ..
Specify the owner of the WWWROOT/cmon (default user 'apache'): <return>
owner is not specified - using default user 'apache'
**** RRD ****
## Comment: If you don't have RRD installed then graphs will not be available
## from the web client, but there is no other functional impact!
Do you wish to install the rrd database on this node (y/n)? : y
Specify the full path to 'rrdtool' (default is /usr/bin/): <return>
No path to rrd specified - using default /usr/bin/
The rrdtool stores data files in a data directory.
Specify the full path to the data directory (about 20MB free space will be neeeded).
RRD data directory (default is /var/lib/cmon/): <return>
No RRD data directory specified - using default /var/lib/cmon/
The datadir does not exists and will be created now!
**** INSTALL CRON SCRIPTS TO UPDATE/MANAGE/GRAPH RRD ****
cron schedules jobs every 5 minutes to update the rrd database and generarate graphs for the web interface.
You are recommended to install the cron jobs.
cron jobs will be installed in /etc/cron.d/cmon Do you want to install cron jobs for cmon (y/n)? : y
installed cron job in /etc/cron.d/cmon
**** INITD SCRIPTS ****
Do you want to install /etc/init.d/cmon (y/n)? : y
Specify the directory where CMON should write its pidfile (default /var/run/): <return>
Saving configuration to ../etc/init.d/cmon
Installing /etc/init.d/cmon
Done - Installed init.d scripts
Now you can start cmon with '/etc/init.d/cmon start'
Every change was written to /etc/cmon.cnf
You need to issue the following GRANTs before starting CMON:
GRANT super, replication client ON *.* TO 'cmon'@'ndb05';
GRANT select,update,insert,delete,create ON cmon.* TO 'cmon'@'ndb05';
## COMMENT: Connect a mysql client to the cmon database and do
## (actual GRANTs are subject to your particular settings):
mysql> GRANT super, replication client ON *.* TO 'cmon'@'ndb05';
mysql> GRANT select,update,insert,delete,create ON cmon.* TO 'cmon'@'ndb05';
4. Start CMON
5. Web interface
## COMMENT: Make sure CMON database and Cluster is started (so initialization won't fail)
> /etc/init.d/cmon start
Starting cmon: ok
The above actually means that the process started. It can still fail initializing the CMON database.
Check the cmon log:
>tail -f /var/log/cmon.log
Feb 17 21:22:28 : (INFO) Starting cmon version 1.1.4 with the following parameters:
--mysql-password=
--mysql-hostname=127.0.0.1
--mysql-port=3306
--ndb-connectstring=app01,app02
--cmon-port=50001
--cluster-id=1
--savetime-clusterlog=24 (hours)
Feb 17 21:22:28 : (INFO) If that doesn't look correct, kill cmon and restart with -? for help on the parameters, or change the params in /etc/init.d/cmon
Feb 17 21:22:28 : (INFO) You need to GRANT (and specify a password if you wish) the following on mysql on 127.0.0.1:
Feb 17 21:22:28 : (INFO) GRANT create,select,update,insert,delete on cmon.* to 'cmon'@'127.0.0.1';
Feb 17 21:22:28 : (INFO) GRANT super on *.* to 'cmon'@'127.0.0.1';
Feb 17 21:22:28 : (INFO) Also GRANT (if you have CMON and the MYSQLD on the same host):
Feb 17 21:22:28 : (INFO) GRANT create,select,update,insert,delete on cmon.* to 'cmon'@'127.0.0.1';
Feb 17 21:22:28 : (INFO) GRANT super on *.* to 'cmon'@'127.0.0.1';
Feb 17 21:22:28 : (INFO) and start cmon with --mysql-hostname=127.0.0.1
Feb 17 21:22:28 : (INFO) Testing connection to mysqld..
Feb 17 21:22:28 : (INFO) Trying to connect to management servers...
Feb 17 21:22:28 : (INFO) Connection ok..
Feb 17 21:22:28 : (INFO)
Feb 17 21:22:28 : (INFO) Please wait while cmon is starting up..
...
Feb 17 21:22:30 : (INFO) MonitorThread: Cluster STARTED - all nodes are started - running 1
Feb 17 21:22:30 : (INFO) MonitorThread: Number of Nodes = 12
Feb 17 21:22:30 : (INFO) MonitorThread: MGM node id = 1
Feb 17 21:22:30 : (INFO) MonitorThread: MGM node id = 2
Feb 17 21:22:30 : (INFO) MonitorThread: NDBD node 3 is STARTED
Feb 17 21:22:30 : (INFO) MonitorThread: NDBD node 4 is STARTED
...
## COMMENT: When you see it has picked up the nodes you have in your cluster, then
## the initialization is good.
## If this does not work, check GRANTs, connectstrings, and paths in /etc/cmon.cnf
Requires that you have a webserver with php-mysql installed.
Simply connect your web browser to e.g 127.0.0.1:8080/cmon or 127.0.0.1/cmon
With the Web Interface it is easy to track performance problems and keep track on resource utilization problems, perhaps you have GC problems in you Java Application Servers (the picture actually show what happened with the transaction load when more worker threads were enabled)?
6. Access the Cluster status from SQL
## COMMENT: connect a mysql client to the mysql server holding the cmon database.
mysql> use cmon;
Database changed
mysql> show tables;
+-------------------------+
| Tables_in_cmon |
+-------------------------+
| alarm |
| alarm_log |
| backup |
| backup_log |
| cluster |
| cluster_log |
| cluster_state |
| cluster_statistics |
| configurator_nodemap |
| diskdata |
| email_notification |
| mailserver |
| memory_usage |
| mysql_global_statistics |
| mysql_master_status |
| mysql_server |
| mysql_slave_status |
| mysql_statistics |
| mysql_variables |
| node_state |
| node_statistics |
| restore |
| restore_log |
| schema_object |
+-------------------------+
24 rows in set (0.00 sec)
mysql> select status from cluster_state;
+---------+
| status |
+---------+
| STARTED |
+---------+
1 row in set (0.00 sec)
mysql> select * from node_state;
+-----+--------+------------+-----------+-----------+---------------+---------+-------------+-----------------+---------------------+
| cid | nodeid | status | node_type | nodegroup | host | version | disconnects | last_disconnect | report_ts |
+-----+--------+------------+-----------+-----------+---------------+---------+-------------+-----------------+---------------------+
| 1 | 1 | CONNECTED | NDB_MGMD | NULL | 10.0.1.1 | 7.0.9 | 0 | NULL | 2010-01-13 12:00:56 |
| 1 | 2 | CONNECTED | NDB_MGMD | NULL | 10.0.1.2 | 7.0.9 | 0 | NULL | 2010-01-13 12:00:56 |
| 1 | 3 | STARTED | NDBD | 0 | 10.0.1.3 | 7.0.9 | 0 | NULL | 2010-01-13 12:00:56 |
| 1 | 4 | STARTED | NDBD | 0 | 10.0.1.4 | 7.0.9 | 0 | NULL | 2010-01-13 12:00:56 |
| 1 | 7 | CONNECTED | API | NULL | 10.0.1.1 | 7.0.9 | 0 | NULL | 2010-01-13 12:00:56 |
| 1 | 8 | CONNECTED | API | NULL | 10.0.1.2 | 7.0.9 | 0 | NULL | 2010-01-13 12:00:56 |
| 1 | 13 | NO_CONTACT | API | NULL | 0.0.0.0 | NULL | 0 | NULL | 2010-01-13 12:00:56 |
| 1 | 12 | NO_CONTACT | API | NULL | 0.0.0.0 | NULL | 0 | NULL | 2010-01-13 12:00:56 |
| 1 | 11 | NO_CONTACT | API | NULL | 0.0.0.0 | NULL | 0 | NULL | 2010-01-13 12:00:56 |
| 1 | 10 | NO_CONTACT | API | NULL | 0.0.0.0 | NULL | 0 | NULL | 2010-01-13 12:00:56 |
| 1 | 9 | CONNECTED | API | NULL | 10.0.1.5 | 7.0.9 | 0 | NULL | 2010-01-13 12:00:56 |
+-----+--------+------------+-----------+-----------+---------------+---------+-------------+-----------------+---------------------+
7. Add MySQL Servers to be monitored
As MySQL Cluster is not able to distinguish between an API or a MySQL Server, we need to tell CMON where our mysql servers are!
> cd /usr/local/cmon/binAnd so on, you need to add every mysql server you want to monitor.
> ./cmon_add_mysqld.sh -ndb01 -p3306
Using default config file path ../etc/cmon.conf
Added MySQL Server
You need to execute the following GRANTs on mysqld@ndb01 for CMON agent to be able to connect:
GRANT REPLICATION SLAVE, SUPER ON *.* TO 'cmon'@'ndb05';
GRANT SELECT ON mysql.* TO 'cmon'@'ndb05';
8. Scripts
All information is stored in SQL tables so it is easy to write scripts around it. Here you can find some example scripts.

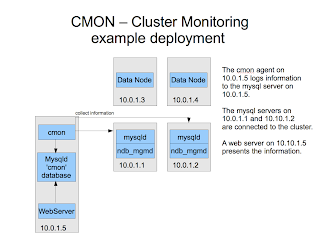

## COMMENT: Put the scripts in /usr/local/cmon/bin9. Suggested Deployment
> cd /usr/local/cmon/bin
> sh get_cluster_status.sh
STARTED
> sh get_node_status.sh -n 4
STARTED
Recommendation: If you have the 'mysqld' on 10.10.1.5, connect it also to Cluster and you can use it for administration!
10. Building from source
If you prefer to build from source then you have to have:
- MySQL Cluster binaries/libs/includes installed on the build machine
- gcc/g++/make
- mysql_config and ndb_config on the PATH
> which mysql_config11. Bugs and problems
/usr/local/mysql/mysql/bin/mysql_config
> which ndb_config
/usr/local/mysql/mysql/bin/ndb_config
## COMMENT: If 'mysql_config' or 'ndb_config' is not on the PATH,
## then you must make sure it is!
> wget http://www.severalnines.com/downloads/cmon/cmon-1.0.2.tar.gz
> tar xvfz cmon-1.0.2.tar.gz
> cd cmon-1.0.2
> ./configure --prefix=/usr/local/cmon/
## COMMENT: end the prefix with 'cmon' and life will be easier.
> make
> sudo make install
> cd /usr/local/cmon/
Proceed at section 2 above.
I would be very happy if you file bugs on lauchpad! If you don't want to file a bug report, you can send an email to 'support (at) severalnines (dot) com
Also, if you have suggestions for improvements, let me know!
